LED Pixel String for Channel Letter Signs

   There are potential advantages to use LED pixel strings as light source of
Channel Letter Signs :

1> It is less fragile. It is difficult to be broken both in transit and during installation.
2> It is energy saving product , mean a lower utility bill by using it .
3> It is a environmentally friendly product.
4> It is safer and easier to install, service and maintain.
5> It is with long lifespan .

    Also the price of LED pixel strings is very competitive now, so it is good to use
 LED pixel string for your channel letter sign projects .

RGB LED Pixel Strings/Nodes

RGB LED Pixel Strings/Nodes is commonly used in holiday decoration and Sign Displays, each Pixel/Node can be controlled individually by controller using various communications protocols. Each Pixel uses 3 data channels to control it, one each for Red, Green and Blue. A string of 50 Pixels would use 150 channels in your sequencing software. (by www.bintekled.com)

The kind of LED string lights is good for Christmas decoration , it can be wrapped around the Christmas tree become color changing LED Christmas tree lights. Because it is waterproof, which can be used in outdoor Christmas decorations or Christmas light show .

* There are several main properties that define each Pixel, and they include:

1. Form Factor for the RGB LED Pixel Strings

Bullet type ( 12mm Bullet Type LED Pixel String/Node )

Square type (12mm Square LED Pixel String/Node)

or other specified form factor .

2. LEDs Spacing between Each Node of RGB Pixles

Normally the spacing between each node is 4" or 6" , or other specified

spacing.

3.Power Supply Voltage for Smart Pixel Strings

Typically 5VDC vs. 12 VDC

4. Color Depth

The number of bits of data used to control each color such as 4,6,8 12 bits Etc.

5. Waterproofing for RGB LED Stings

Typically IP65 , IP67 and  IP68.

6. Wire Size for Pixel Strings

The size of the wire connecting the Pixels together 18 AWG vs. 20AWG

7. Pixel (IC)Control chips for the Pixel Node

WS2801, WS2811, UCS1903, TM1809, TM1824 Etc.

8. Number of Wires Required

Normally 3 wires vs 4 wires

Pictures to show the colorful LED pixel string light and  some of applications using smart LED Pixel Strings/ Nodes:

Panel Light Shape , Size and Structure

Panel Light , it may be called as LED panel or ceiling panel . Mostly , it is for office use

to replace the drop-down ceiling troffers .

The most common use shape as shown on below pictures, which is square and rectangle, generally, power range from 20W to 72W for different applications or size of the room .

Square Shape Panel Light (or LED Panel )

Rectangle Shape Panel Light (or LED Panel )

Typical Size of Ceiling Panel (or LED Panel )

Basic Structure of  Panel Light (or LED Panel )

Basic Structure of Panel Light shows on above picture , and the core parts

is the Light Guided Plate and PCB+LED. More parameter is listed here .

Of course , there is LED driver to power up the Panel Light, which has not shown on above

pictures.

Send me a message if you have any question about Panel Light .

Recessed LED Panel downlight

Normally, the power of LED panel downlight range from 3W to 24W , size from Ø85 to

Ø300mm for the round ceiling panel light , and 85x85mm to 300x300mm for the square panel downlight . Below pictures to show what the round and square LED recessed lighting panel look like :

Typical application will be at home , store ( car store) or shopping mall.

LED Driver for LED ceiling panel lights

The LED ceiling panel light is very thin , so the LED driver(power supply) is not integrated

inside the light,but individual connect with the panel light. There is advantage on that configuration,

which is more easy to change,for the lifespan of driver is shorter than the LED chips, when the LED

driver is fail after a few years, you can change the driver only, not the whole light.

And the driver is very important part of the LED ceiling panel light, some cheap driver can't

last for even a year, and you can't find out the difference by eyes, for it looks the same as the

good quality one, but the inside PCB and circuit design is totally different.

If you have any question on the ceiling panel light, please feel free to contact us. We are

more than willing the help you on any questions.

LED flat panel lighting application with pictures

Below pictures to show different size of LED flat panel lighting using in different application,

Hope it will help you to understand the real application of LED flat panel lights.

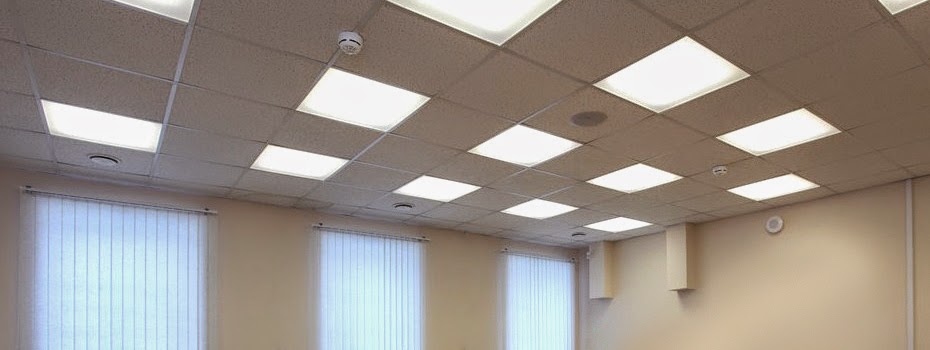

For the office , mostly the installation method will be Embedded (Built-in) type.

More pictures listed below to show the different application for the LED flat panel lighting, they are
used in Warehouse ,Gym with suspended installation method.

How to choose LED flat panel light for your application ?

First of all, where to be used , Hotels, Hospitals, School / colleges / universities, Conference / meeting rooms ,  Residential / institution buildings , Factories / offices,Commercial complexes ?

Different application location require different shape, different dimensions, different  installation method and different color temperature.

Second, what kind of installation method to be choose?  Suspended or surface mounted or Embedded?

If the LED panel light will be placed in the ceiling to replace some ceiling tiles, then please choose the suitable
dimensions. There are different standard in different countries for the ceiling tiles' dimensions.

For surface mounted installation, then please make sure there is enough space and the wall or ceiling is hard enough for
mounting the frame.

If suspended installation, then make sure the ceiling is enough hard to bear the weight of the LED panel light.

Third, what is the brightness is needed , which depends on the applications.

Fourth, what is the Color temperature is needed . Usually there are three kinds color temperature, warm white (about 3000K), natural white (about4500K) and cold white (about 6000K). And other color such as RED, GREEN, BLUE, AMBER is available for special requirement as well .

Last one, please contact us if there is any problem on choosing the LED flat panel light for your projects.
